Examples for backend: winston

Supported arguments: annotation, color, fillto, group, label, legend, linestyle, linetype, marker, markercolor, markersize, nbins, reg, show, size, title, width, windowtitle, x, xlabel, y, ylabel
Supported values for axis: :auto, :left
Supported values for linetype: :none, :line, :path, :sticks, :scatter, :hist, :bar
Supported values for linestyle: :solid, :dash, :dot, :dashdot
Supported values for marker: :none, :ellipse, :rect, :diamond, :utriangle, :dtriangle, :cross, :xcross, :star1
Is subplot/subplot! supported? No

Initialize

using Plots
winston!()

Lines

A simple line plot of the columns.

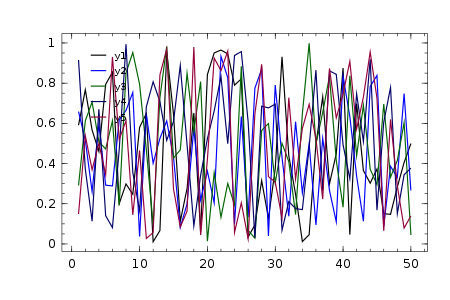

plot(rand(50,5),w=3)

Functions

Plot multiple functions. You can also put the function first.

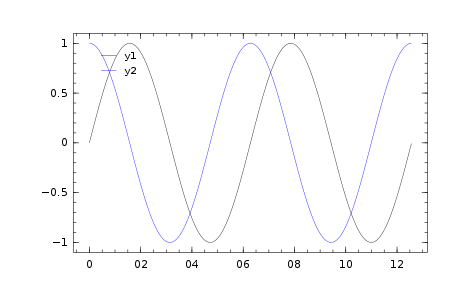

plot(0:0.01:4π,[sin,cos])

You can also call it with plot(f, xmin, xmax).

plot([sin,cos],0,4π)

Or make a parametric plot (i.e. plot: (fx(u), fy(u))) with plot(fx, fy, umin, umax).

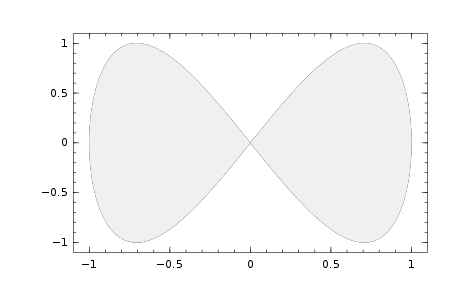

plot(sin,(x->begin  # /home/tom/.julia/v0.4/Plots/docs/example_generation.jl, line 33:
            sin(2x)
        end),0,2π,legend=false,fillto=0)

Global

Change the guides/background/limits/ticks. You can also use shorthand functions: title!, xlabel!, ylabel!, xlims!, ylims!, xticks!, yticks!

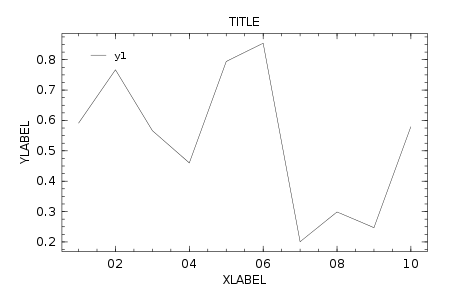

plot(rand(10),title="TITLE",xlabel="XLABEL",ylabel="YLABEL",background_color=RGB(0.2,0.2,0.2),xlim=(-3,13),yticks=0:0.1:1)

Two-axis

Use the axis arguments.

Note: Currently only supported with Qwt and PyPlot

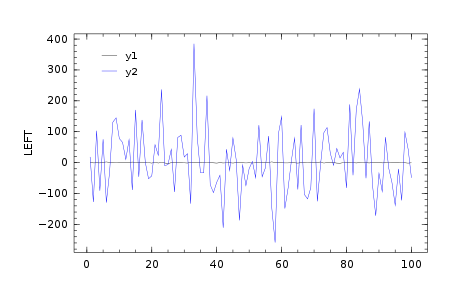

plot(Vector[randn(100),randn(100) * 100]; axis=[:l,:r],ylabel="LEFT",yrightlabel="RIGHT")

Vectors w/ pluralized args

Plot multiple series with different numbers of points. Mix arguments that apply to all series (singular... see marker) with arguments unique to each series (pluralized... see colors).

plot(Vector[rand(10),rand(20)]; marker=:ellipse,markersize=8,c=[:red,:blue])

Build plot in pieces

Start with a base plot...

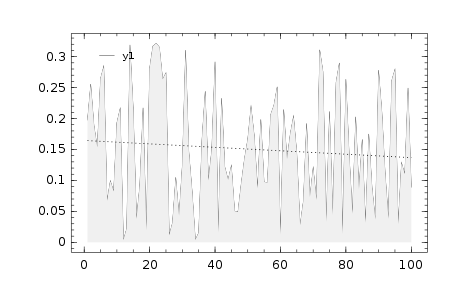

plot(rand(100) / 3,reg=true,fillto=0)

and add to it later.

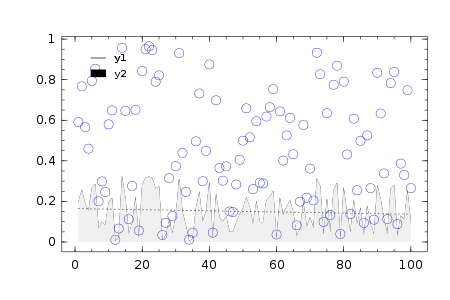

scatter!(rand(100),markersize=6,c=:blue)

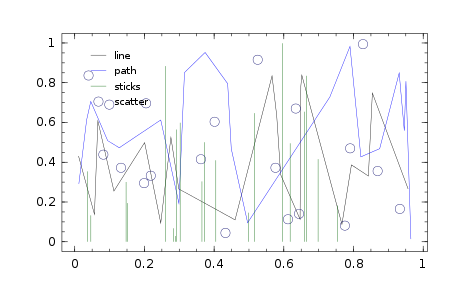

Line types

types = intersect(supportedTypes(),[:line,:path,:steppre,:steppost,:sticks,:scatter])
n = length(types)
x = Vector[sort(rand(20)) for i = 1:n]
y = rand(20,n)
plot(x,y,t=types,lab=map(string,types))

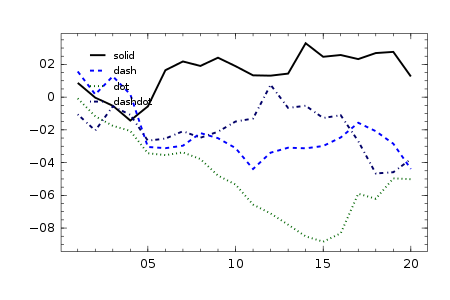

Line styles

styles = setdiff(supportedStyles(),[:auto])
plot(cumsum(randn(20,length(styles)),1); style=:auto,label=map(string,styles),w=5)

Marker types

markers = setdiff(supportedMarkers(),[:none,:auto])
scatter(0.5:9.5,[fill(i - 0.5,10) for i = length(markers):-1:1]; marker=:auto,label=map(string,markers),ms=10)

Bar

x is the midpoint of the bar. (todo: allow passing of edges instead of midpoints)

bar(randn(1000))

Histogram

histogram(randn(1000),nbins=50)

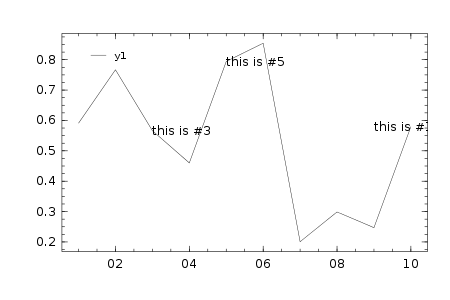

Annotations

Currently only text annotations are supported. Pass in a tuple or vector-of-tuples: (x,y,text). annotate!(ann) is shorthand for plot!(; annotation=ann)

y = rand(10)
plot(y,ann=(3,y[3],"this is #3"))
annotate!([(5,y[5],"this is #5"),(9,y[10],"this is #10")])
