Examples for backend: immerse

• Supported arguments: args, axis, color, kwargs, label, legend, linestyle, linetype, marker, markercolor, markersize, nbins, reg, size, title, width, windowtitle, xlabel, ylabel, yrightlabel
• Supported values for axis: :auto, :left
• Supported values for linetype: :none, :line, :step, :sticks, :scatter, :heatmap, :hexbin, :hist, :bar, :hline, :vline, :ohlc
• Supported values for linestyle: :auto, :solid
• Supported values for marker: :none, :auto, :rect, :ellipse, :diamond, :cross
• Is subplot/subplot! supported? Yes

Initialize

using Plots
immerse!()

Lines

A simple line plot of the 3 columns.

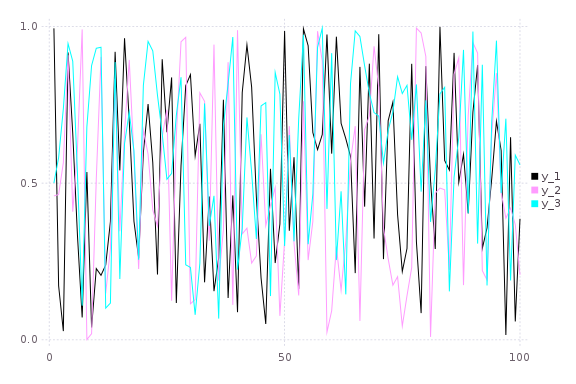

plot(rand(100,3))

Functions

Plot multiple functions. You can also put the function first.

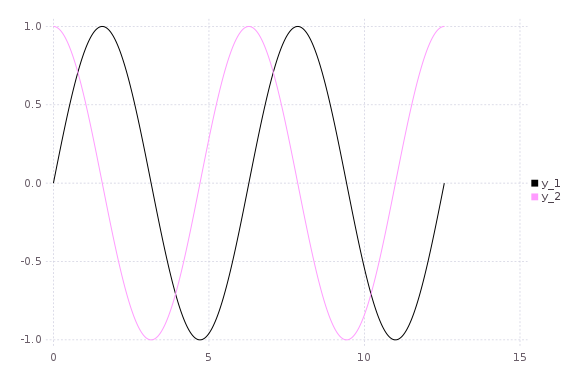

plot(0:0.01:4π,[sin,cos])

You can also call it with plot(f, xmin, xmax).

plot([sin,cos],0,4π)

Or make a parametric plot (i.e. plot: (fx(u), fy(u))) with plot(fx, fy, umin, umax).

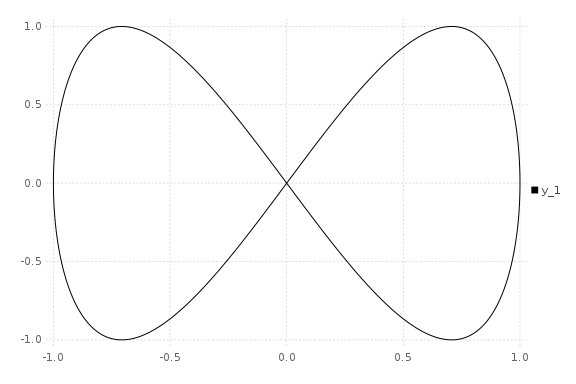

plot(sin,(x->begin  # /home/tom/.julia/v0.4/Plots/docs/example_generation.jl, line 33:
            sin(2x)
        end),0,2π)

Global

Change the guides/background without a separate call.

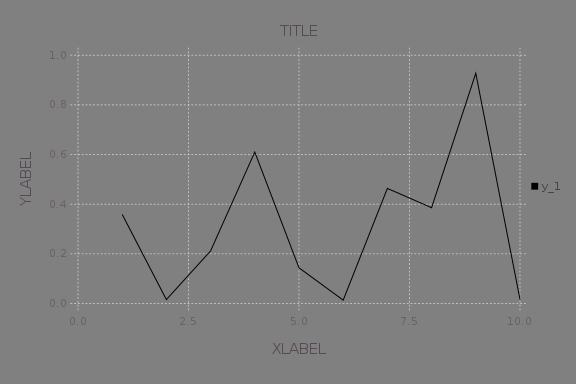

plot(rand(10); title="TITLE",xlabel="XLABEL",ylabel="YLABEL",background_color=RGB(0.5,0.5,0.5))

Two-axis

Use the axis or axiss arguments.

Note: Currently only supported with Qwt and PyPlot

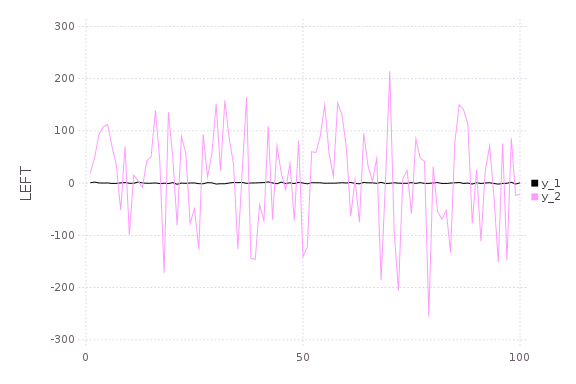

plot(Vector[randn(100),randn(100) * 100]; axiss=[:left,:right],ylabel="LEFT",yrightlabel="RIGHT")

Vectors w/ pluralized args

Plot multiple series with different numbers of points. Mix arguments that apply to all series (singular... see marker) with arguments unique to each series (pluralized... see colors).

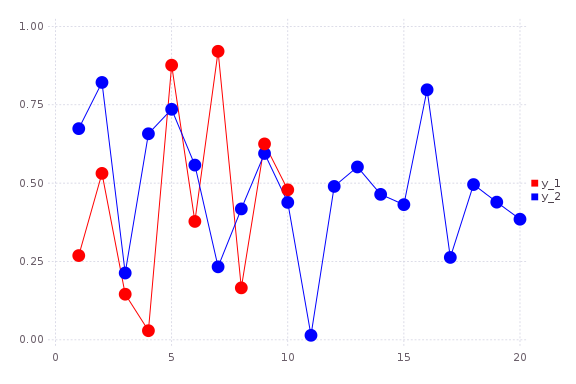

plot(Vector[rand(10),rand(20)]; marker=:ellipse,markersize=8,colors=[:red,:blue])

Build plot in pieces

Start with a base plot...

plot(rand(100) / 3; reg=true,fillto=0)

and add to it later.

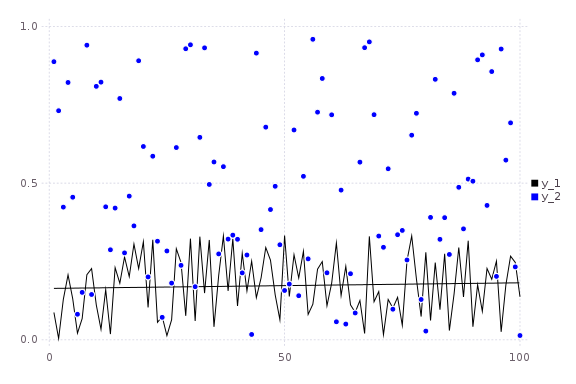

scatter!(rand(100); markersize=6,color=:blue)

Heatmaps

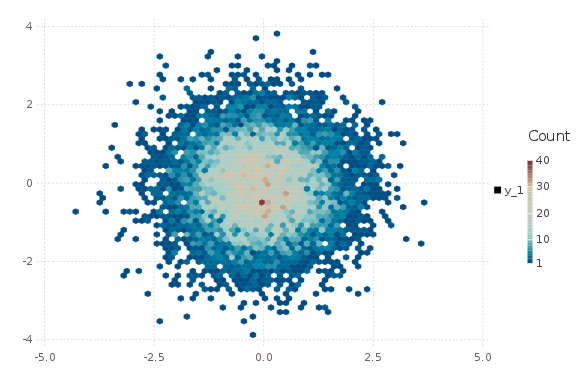

heatmap(randn(10000),randn(10000); nbins=100)

Suported line types

All options: (:line, :orderedline, :step, :stepinverted, :sticks, :scatter, :none, :heatmap, :hexbin, :hist, :bar)

types = intersect(supportedTypes(),[:line,:step,:stepinverted,:sticks,:scatter])
n = length(types)
x = Vector[sort(rand(20)) for i = 1:n]
y = rand(20,n)

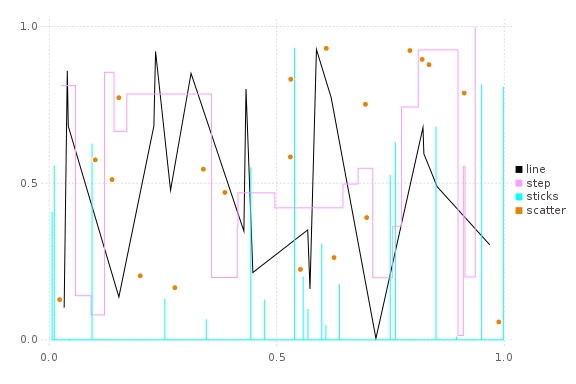

plot(x,y; linetypes=types,labels=map(string,types))

Supported line styles

All options: (:solid, :dash, :dot, :dashdot, :dashdotdot)

styles = setdiff(supportedStyles(),[:auto])

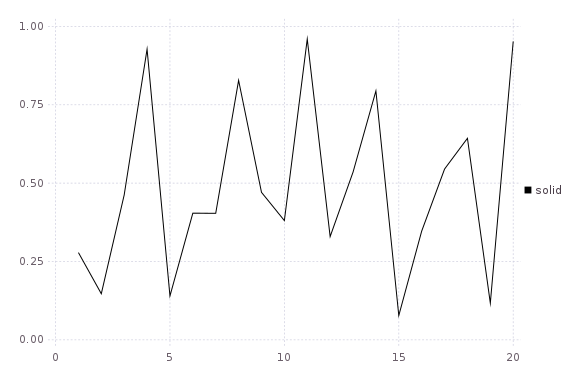

plot(rand(20,length(styles)); linestyle=:auto,labels=map(string,styles))

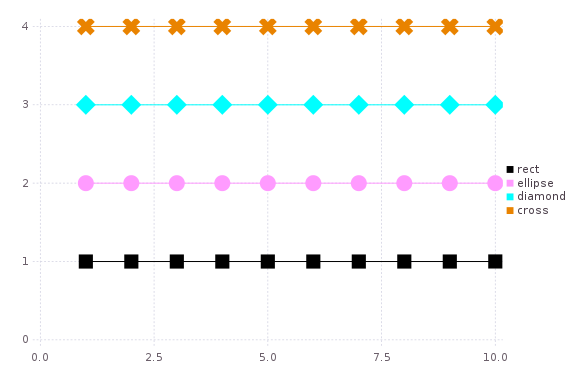

Supported marker types

All options: (:none, :auto, :ellipse, :rect, :diamond, :utriangle, :dtriangle, :cross, :xcross, :star1, :star2, :hexagon)

markers = setdiff(supportedMarkers(),[:none,:auto])
plot([fill(i,10) for i = 1:length(markers)]; marker=:auto,labels=map(string,markers),markersize=10)

Bar

x is the midpoint of the bar. (todo: allow passing of edges instead of midpoints)

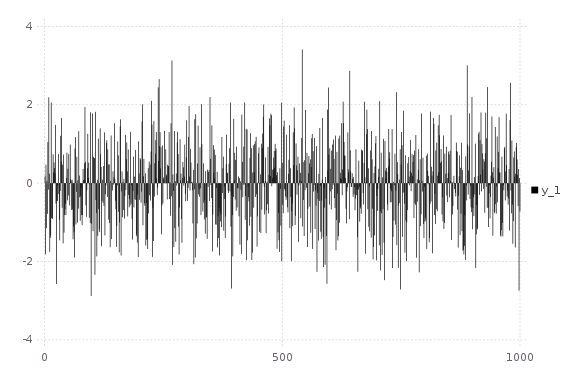

bar(randn(1000))

Histogram

note: fillto isn't supported on all backends

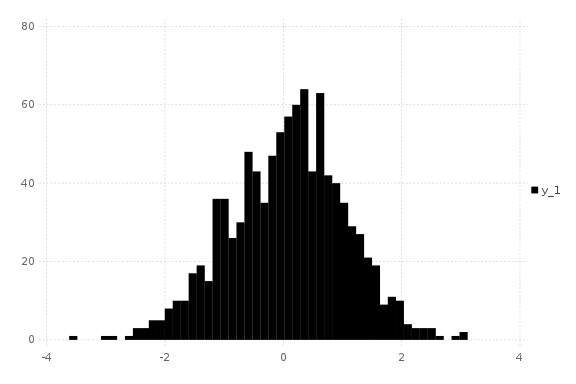

histogram(randn(1000); nbins=50,fillto=20)

Subplots

subplot and subplot! are distinct commands which create many plots and add series to them in a circular fashion. You can define the layout with keyword params... either set the number of plots n (and optionally number of rows nr or number of columns nc), or you can set the layout directly with layout.

Note: Gadfly is not very friendly here, and although you can create a plot and save a PNG, I haven't been able to actually display it.

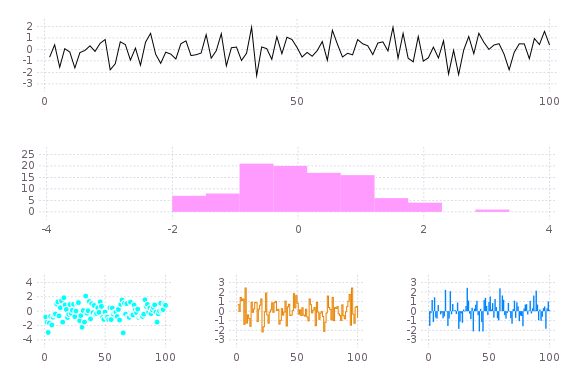

subplot(randn(100,5); layout=[1,1,3],linetypes=[:line,:hist,:scatter,:step,:bar],nbins=10,legend=false)

Adding to subplots

Note here the automatic grid layout, as well as the order in which new series are added to the plots.

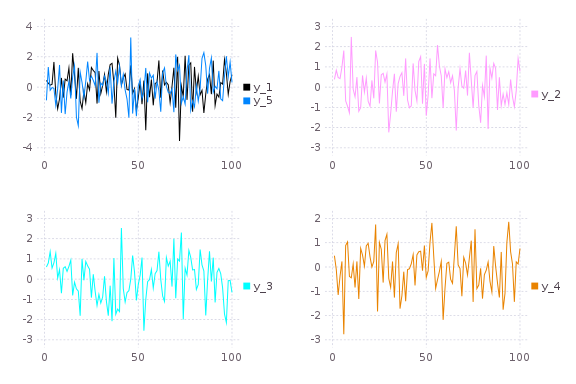

subplot(randn(100,5); n=4)

subplot!(randn(100,3))

Open/High/Low/Close

Create an OHLC chart. Pass in a vector of 4-tuples as your y argument. Adjust the tick width with arg markersize.

n = 20
hgt = rand(n) + 1
bot = randn(n)
openpct = rand(n)
closepct = rand(n)
y = [(openpct[i] * hgt[i] + bot[i],bot[i] + hgt[i],bot[i],closepct[i] * hgt[i] + bot[i]) for i = 1:n]

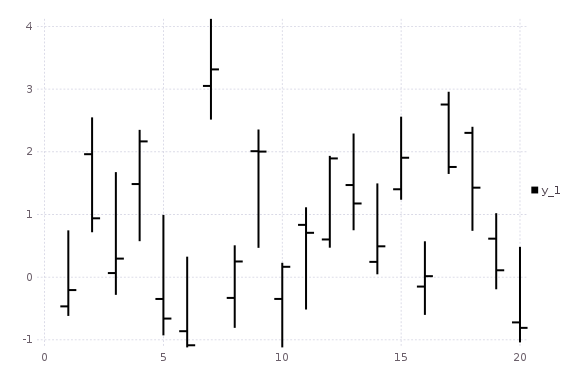

ohlc(y; markersize=8)
