Examples for backend: pyplot

Initialize

using Plots
pyplot()

Lines

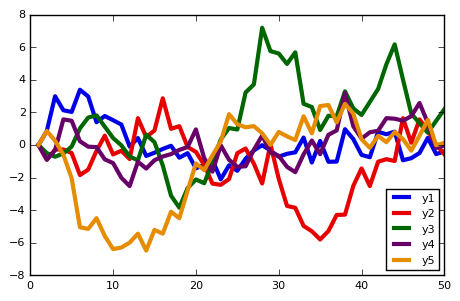

A simple line plot of the columns.

plot(fakedata(50,5),w=3)

Functions, adding data, and animations

Plot multiple functions. You can also put the function first, or use the form plot(f, xmin, xmax) where f is a Function or AbstractVector{Function}.

Get series data: x, y = plt[i]. Set series data: plt[i] = (x,y). Add to the series with push!/append!.

Easily build animations. (convert or ffmpeg must be available to generate the animation.) Use command gif(anim, filename, fps=15) to save the animation.

p = plot([sin,cos],zeros(0),leg=false)
anim = Animation()
for x = linspace(0,10π,200) # /Users/tom/.julia/v0.4/Plots/docs/example_generation.jl, line 43:
    push!(p,x,Float64[sin(x),cos(x)]) # /Users/tom/.julia/v0.4/Plots/docs/example_generation.jl, line 44:
    frame(anim)
end

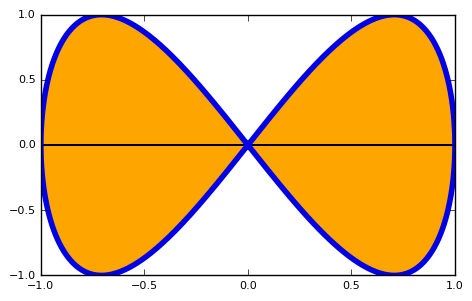

Parametric plots

Plot function pair (x(u), y(u)).

plot(sin,(x->begin  # /Users/tom/.julia/v0.4/Plots/docs/example_generation.jl, line 50:
            sin(2x)
        end),0,2π,line=4,leg=false,fill=(0,:orange))

Colors

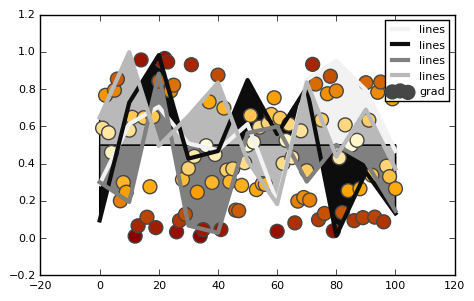

Access predefined palettes (or build your own with the colorscheme method). Line/marker colors are auto-generated from the plot's palette, unless overridden. Set the z argument to turn on series gradients.

y = rand(100)
plot(0:10:100,rand(11,4),lab="lines",w=3,palette=:grays,fill=(0.5,:auto))
scatter!(y,z=abs(y - 0.5),m=(10,:heat),lab="grad")

Global

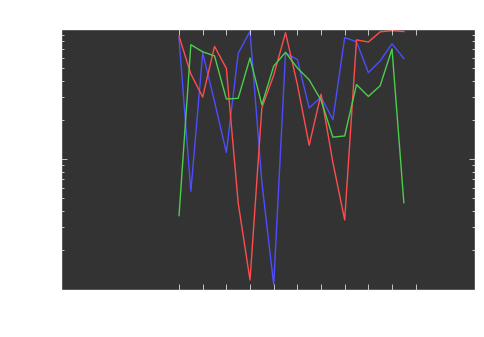

Change the guides/background/limits/ticks. Convenience args xaxis and yaxis allow you to pass a tuple or value which will be mapped to the relevant args automatically. The xaxis below will be replaced with xlabel and xlims args automatically during the preprocessing step. You can also use shorthand functions: title!, xaxis!, yaxis!, xlabel!, ylabel!, xlims!, ylims!, xticks!, yticks!

plot(rand(20,3),xaxis=("XLABEL",(-5,30),0:2:20,:flip),background_color=RGB(0.2,0.2,0.2),leg=false)
title!("TITLE")
yaxis!("YLABEL",:log10)

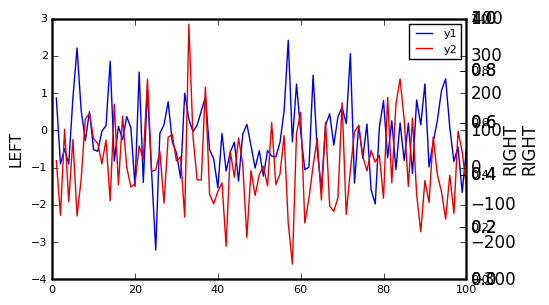

Two-axis

Use the axis arguments.

Note: Currently only supported with Qwt and PyPlot

plot(Vector[randn(100),randn(100) * 100],axis=[:l :r],ylabel="LEFT",yrightlabel="RIGHT")

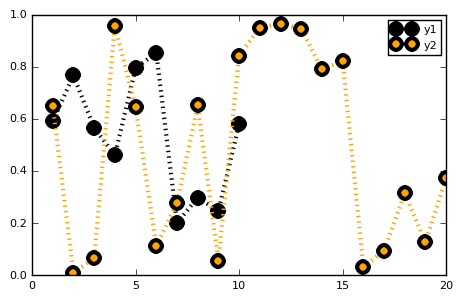

Arguments

Plot multiple series with different numbers of points. Mix arguments that apply to all series (marker/markersize) with arguments unique to each series (colors). Special arguments line, marker, and fill will automatically figure out what arguments to set (for example, we are setting the linestyle, linewidth, and color arguments with line.) Note that we pass a matrix of colors, and this applies the colors to each series.

plot(Vector[rand(10),rand(20)],marker=(:ellipse,8),line=(:dot,3,[:black :orange]))

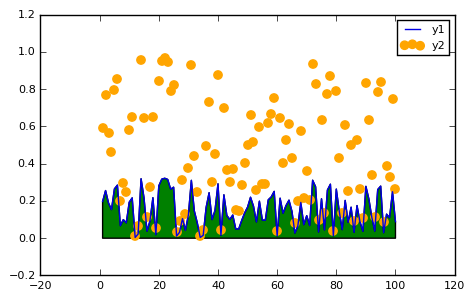

Build plot in pieces

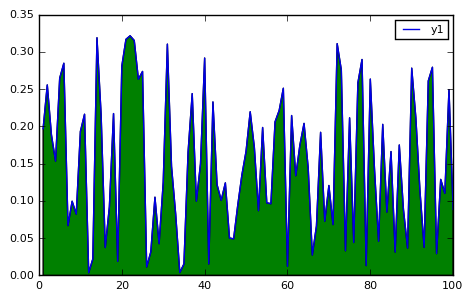

Start with a base plot...

plot(rand(100) / 3,reg=true,fill=(0,:green))

and add to it later.

scatter!(rand(100),markersize=6,c=:orange)

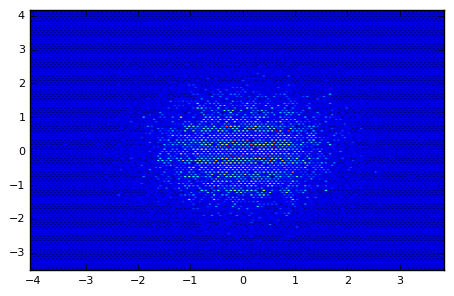

Heatmaps

heatmap(randn(10000),randn(10000),nbins=100)

Line types

types = intersect(supportedTypes(),[:line,:path,:steppre,:steppost,:sticks,:scatter])'
n = length(types)
x = Vector[sort(rand(20)) for i = 1:n]
y = rand(20,n)
plot(x,y,line=(types,3),lab=map(string,types),ms=15)

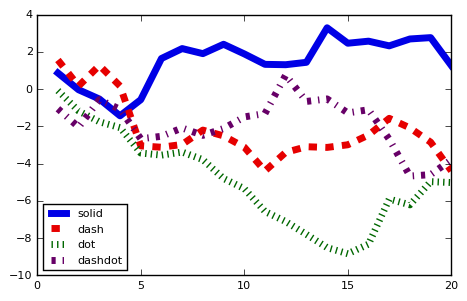

Line styles

styles = setdiff(supportedStyles(),[:auto])'
plot(cumsum(randn(20,length(styles)),1),style=:auto,label=map(string,styles),w=5)

Marker types

markers = setdiff(supportedMarkers(),[:none,:auto,Shape])'
n = length(markers)
x = (linspace(0,10,n + 2))[2:end - 1]
y = repmat(reverse(x)',n,1)
scatter(x,y,m=(8,:auto),lab=map(string,markers),bg=:linen)

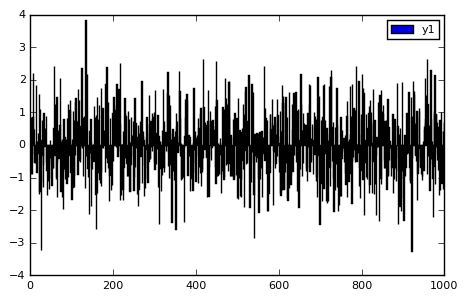

Bar

x is the midpoint of the bar. (todo: allow passing of edges instead of midpoints)

bar(randn(999))

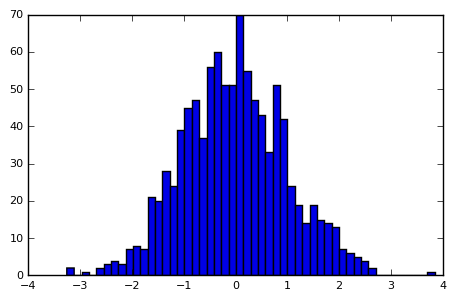

Histogram

histogram(randn(1000),nbins=50)

Subplots

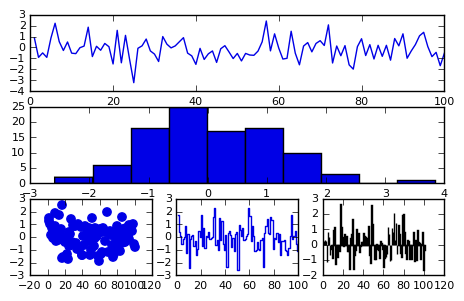

subplot and subplot! are distinct commands which create many plots and add series to them in a circular fashion. You can define the layout with keyword params... either set the number of plots n (and optionally number of rows nr or number of columns nc), or you can set the layout directly with layout.

subplot(randn(100,5),layout=[1,1,3],t=[:line :hist :scatter :step :bar],nbins=10,leg=false)

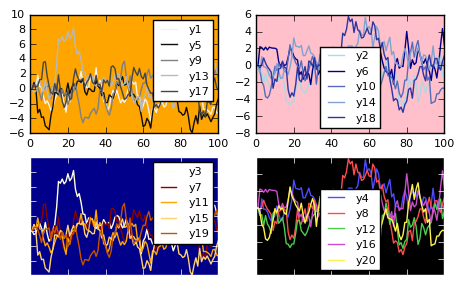

Adding to subplots

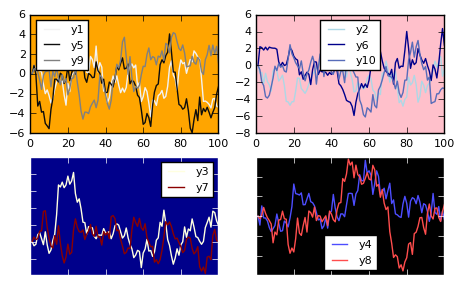

Note here the automatic grid layout, as well as the order in which new series are added to the plots.

subplot(fakedata(100,10),n=4,palette=[:grays :blues :heat :lightrainbow],bg=[:orange :pink :darkblue :black])

subplot!(fakedata(100,10))

Annotations

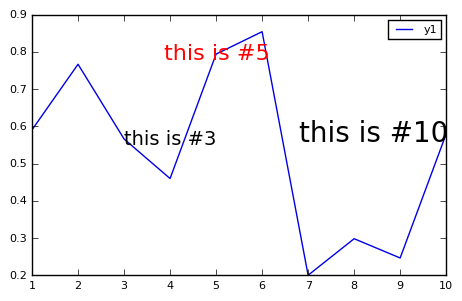

Currently only text annotations are supported. Pass in a tuple or vector-of-tuples: (x,y,text). annotate!(ann) is shorthand for plot!(; annotation=ann)

y = rand(10)
plot(y,ann=(3,y[3],text("this is #3",:left)))
annotate!([(5,y[5],text("this is #5",16,:red,:center)),(10,y[10],text("this is #10",:right,20,"courier"))])

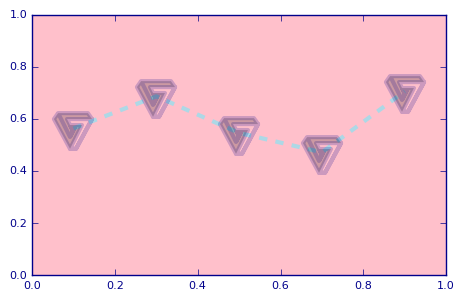

Custom Markers

A Plots.Shape is a light wrapper around vertices of a polygon. For supported backends, pass arbitrary polygons as the marker shapes. Note: The center is (0,0) and the size is expected to be rougly the area of the unit circle.

verts = [(-1.0,1.0),(-1.28,0.6),(-0.2,-1.4),(0.2,-1.4),(1.28,0.6),(1.0,1.0),(-1.0,1.0),(-0.2,-0.6),(0.0,-0.2),(-0.4,0.6),(1.28,0.6),(0.2,-1.4),(-0.2,-1.4),(0.6,0.2),(-0.2,0.2),(0.0,-0.2),(0.2,0.2),(-0.2,-0.6)]
plot(0.1:0.2:0.9,0.7 * rand(5) + 0.15,l=(3,:dash,:lightblue),m=(Shape(verts),30,RGBA(0,0,0,0.2)),bg=:pink,fg=:darkblue,xlim=(0,1),ylim=(0,1),leg=false)

• Supported arguments: annotation, axis, background_color, color, color_palette, fillcolor, fillrange, foreground_color, group, guidefont, label, layout, legend, legendfont, linestyle, linetype, linewidth, markercolor, markershape, markersize, n, nbins, nc, nr, show, size, tickfont, title, windowtitle, x, xflip, xlabel, xlims, xscale, xticks, y, yflip, ylabel, ylims, yrightlabel, yscale, yticks, z
• Supported values for axis: :auto, :left, :right
• Supported values for linetype: :bar, :heatmap, :hexbin, :hist, :hline, :line, :none, :path, :scatter, :steppost, :steppre, :sticks, :vline
• Supported values for linestyle: :auto, :dash, :dashdot, :dot, :solid
• Supported values for marker: :Plots.Shape, :auto, :cross, :diamond, :dtriangle, :ellipse, :heptagon, :hexagon, :none, :octagon, :pentagon, :rect, :star4, :star5, :star6, :star7, :star8, :utriangle, :xcross
• Is subplot/subplot! supported? Yes
