Plots
Author: Thomas Breloff (@tbreloff)
Plotting interface and wrapper for several plotting packages.
Please add wishlist items, bugs, or any other comments/questions to the issues list.
Examples for each implemented backend:
Installation
First, clone the package
Pkg.clone("https://github.com/tbreloff/Plots.jl.git")
then get any plotting packages you need (obviously, you should get at least one backend):
Pkg.add("Gadfly") # [optional]
Pkg.clone("https://github.com/tbreloff/Qwt.jl.git") # [optional] requires pyqt and pyqwt
Pkg.add("UnicodePlots") # [optional]
Use
Load it in. The underlying plotting backends are not imported until plotter() is called (which happens
on your first call to plot or subplot). This means that you don't need any backends to be installed when you call using Plots.
Plots will try to figure out a good default backend for you automatically based on what backends are installed.
using Plots
Do a plot in Gadfly, then save a png:
gadfly!()
plot(rand(10,2); marker = :rect) # this will bring up a browser window with the plot, set show=false if you don't want that
savepng(Plots.IMG_DIR * "gadfly1.png")

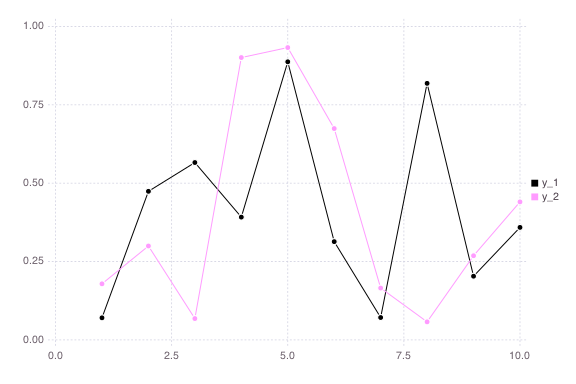

which saves:
See the examples pages for lots of ways to plot in every supported backend.
API
Call plotter!(backend::Symbol) or the shorthands (gadfly!(), qwt!(), unicodeplots!(), etc) to set the current plotting backend.
Subsequent commands are converted into the relevant plotting commands for that package:
gadfly!()
plot(1:10) # this effectively calls `y = 1:10; Gadfly.plot(x=1:length(y), y=y)`
qwt!()
plot(1:10) # this effectively calls `Qwt.plot(1:10)`
Use plot to create a new plot object, and plot! to add to an existing one:
plot(args...; kw...) # creates a new plot window, and sets it to be the `currentPlot`
plot!(args...; kw...) # adds to the `currentPlot`
plot!(plotobj, args...; kw...) # adds to the plot `plotobj`
Now that you know which plot object you're updating (new, current, or other), I'll leave it off for simplicity. Here are some various args to supply, and the implicit mapping (AVec == AbstractVector and AMat == AbstractMatrix):
plot(y::AVec; kw...) # one line... x = 1:length(y)
plot(x::AVec, y::AVec; kw...) # one line (will assert length(x) == length(y))
plot(y::AMat; kw...) # multiple lines (one per column of x), all sharing x = 1:size(y,1)
plot(x::AVec, y::AMat; kw...) # multiple lines (one per column of x), all sharing x (will assert length(x) == size(y,1))
plot(x::AMat, y::AMat; kw...) # multiple lines (one per column of x/y... will assert size(x) == size(y))
plot(f::Function, xmin::Real, xmax::Real; kw...) # one line, map function for range [xmin,xmax]
plot(f::AVec{Function}, xmin::Real, xmax::Real; kw...) # multiple lines, map functions for range [xmin,xmax]
plot(fx::Function, fy::Function, umin::Real, umax::Real; kw...) # parametric plot... x = fx(u), y = fy(u)
plot(x::AVec, f::Function; kw...) # one line, y = f(x)... can swap x and f
plot(x::AMat, f::Function; kw...) # multiple lines, yᵢⱼ = f(xᵢⱼ)... can swap f and x
plot(x::AVec, fs::AVec{Function}; kw...) # multiple lines, yᵢⱼ = fⱼ(xᵢ)
plot(y::AVec{AVec}; kw...) # multiple lines, each with x = 1:length(y[i])
plot(x::AVec, y::AVec{AVec}; kw...) # multiple lines, will assert length(x) == length(y[i])
plot(x::AVec{AVec}, y::AVec{AVec}; kw...) # multiple lines, will assert length(x[i]) == length(y[i])
plot(n::Integer; kw...) # n lines, all empty (for updating plots)
# TODO: DataFrames, categorical values
With subplot, create multiple plots at once, with flexible layout options:
y = rand(100,3)
subplot(y; n = 3) # create an automatic grid, and let it figure out the shape
subplot(y; n = 3, nr = 1) # create an automatic grid, but fix the number of rows
subplot(y; n = 3, nc = 1) # create an automatic grid, but fix the number of columns
subplot(y; layout = [1, 2]) # explicit layout. Lists the number of plots in each row
Tip: You can call subplot!(args...; kw...) to add to an existing subplot.
Tip: Calling subplot! on a Plot object, or plot! on a Subplot object will throw an error.
Shorthands:
scatter(args...; kw...) = plot(args...; kw..., linetype = :none, marker = :hexagon)
scatter!(args...; kw...) = plot!(args...; kw..., linetype = :none, marker = :hexagon)
bar(args...; kw...) = plot(args...; kw..., linetype = :bar)
bar!(args...; kw...) = plot!(args...; kw..., linetype = :bar)
histogram(args...; kw...) = plot(args...; kw..., linetype = :hist)
histogram!(args...; kw...) = plot!(args...; kw..., linetype = :hist)
heatmap(args...; kw...) = plot(args...; kw..., linetype = :heatmap)
heatmap!(args...; kw...) = plot!(args...; kw..., linetype = :heatmap)
Some keyword arguments you can set:
axis # :left or :right
color # can be a string ("red") or a symbol (:red) or a ColorsTypes.jl Colorant (RGB(1,0,0)) or :auto (which lets the package pick)
label # string or symbol, applies to that line, may go in a legend
width # width of a line
linetype # :line, :step, :stepinverted, :sticks, :dots, :none, :heatmap, :hexbin, :hist, :bar
linestyle # :solid, :dash, :dot, :dashdot, :dashdotdot
marker # :none, :ellipse, :rect, :diamond, :utriangle, :dtriangle, :cross, :xcross, :star1, :star2, :hexagon
markercolor # same choices as `color`, or :match will set the color to be the same as `color`
markersize # size of the marker
nbins # number of bins for heatmap/hexbin and histograms
heatmap_c # color cutoffs for Qwt heatmaps
fillto # fillto value for area plots
title # string or symbol, title of the plot
xlabel # string or symbol, label on the bottom (x) axis
ylabel # string or symbol, label on the left (y) axis
yrightlabel # string or symbol, label on the right (y) axis
reg # true or false, add a regression line for each line
size # (Int,Int), resize the enclosing window
pos # (Int,Int), move the enclosing window to this position
windowtitle # string or symbol, set the title of the enclosing windowtitle
screen # Integer, move enclosing window to this screen number (for multiscreen desktops)
show # true or false, show the plot (in case you don't want the window to pop up right away)
If you don't include a keyword argument, these are the defaults:
axis = :left
color = :auto
label = automatically generated (y1, y2, ...., or y1 (R), y2 (R) for the right axis)
width = 1
linetype = :line
linestype = :solid
marker = :none
markercolor = :match
markersize = 3
nbins = 100
heatmap_c = (0.15, 0.5)
fillto = nothing
title = ""
xlabel = ""
ylabel = ""
yrightlabel = ""
reg = false
size = (800,600)
pos = (0,0)
windowtitle = ""
screen = 1
show = true
Tip: You can see the default value for a given argument with plotDefault(arg::Symbol), and set the default value with plotDefault!(arg::Symbol, value)
Tip: When plotting multiple lines, you can give every line the same trait by using the singular, or add an "s" to pluralize. (yes I know it's not gramatically correct, but it's easy to use and implement)
# note the same width is applied to both lines, whereas each line gets different color and axis
plot(rand(100,2); colors = [:red, RGB(.5,.5,0)], axiss = [:left, :right], width = 5)
TODO
- Plot vectors/matrices/functions
- Plot DataFrames
- Scales
- Categorical Inputs (strings, etc... for hist, bar? or can split one series into multiple?)
- Custom markers
- Special plots (boxplot, ohlc?)
- Subplots
- Histograms
- 3D plotting
- Scenes/Drawing
- Graphs
- Interactivity (GUIs)
- Gadfly.jl
- PyPlot.jl
- Winston.jl
- Gaston.jl
- GLPlot.jl
- Qwt.jl
- Bokeh.jl
- Plotly.jl
- GoogleCharts.jl
- Vega.jl
- PLplot.jl
- TextPlots.jl
- ASCIIPlots.jl
- Sparklines.jl
- UnicodePlots.jl
- Hinton.jl
- ImageTerm.jl
- GraphViz.jl
- TikzGraphs.jl
- GraphLayout.jl
More information on backends (both supported and unsupported)
See the wiki at: https://github.com/JuliaPlot/juliaplot_docs/wiki
