This change fixes incompatibility of Gnuplot.jl with Documenter.jl
versions 0.27.0 and above. Without this change, Gnuplot.jl has at
least these problems:
1. When building Gnuplot.jl documentation, the process blocks and
never finishes.
2. When using Gnuplot.jl in docstrings in other code, running
`doctest` blocks and never finishes.
The reason is that Documenter uses a new version of IOCapture.jl,
which contains this commit:
6cb4cdff34.
Documenter evaluates code snippets from the documentation with
`stdout` redirected to a pipe to show the command's output. The
mentioned commit changes the behavior so that now capturing waits
until the pipe is closed. The problem with Gnuplot.jl is that when the
gnuplot process is started as a part of the execution of documentation
code snippet, its `stdout` is bound to Documenter's pipe. The pipe is
not closed until the gnuplot process exits, which does not happen
unless the code snippet calls `Gnuplot.quit` explicitly. Therefore
Documenter blocks indefinitely.
This can be demonstrated by storing the following code in `test.jl`
module GnuplotDocTest
"""
```jldoctest; setup = :(using Gnuplot)
julia> @gp rand(100)
```
"""
test() = nothing
end
using Documenter
doctest(pwd(), [GnuplotDocTest])
and running `julia test.jl`.
To fix this problem, we run the gnuplot process with stdout redirected
to a pipe and create an asynchronous task, which reads the gnuplot's
stdout and writes it to Julia's current stdout.
Correctness of this approach can be verified by running:
using Gnuplot
Gnuplot.options.term = "dumb"
@gp "plot sin(x)"
Dumb terminal prints to stdout and the above command shows the graph
on Julia's stdout too. In the next commit, we add the above code as a
doctest.
Gnuplot.jl
A Julia interface to gnuplot.
Gnuplot.jl is a simple package able to send both data and commands from Julia to an underlying gnuplot process. Its main purpose it to provide a fast and powerful data visualization framework, using an extremely concise Julia syntax. It also has automatic display of plots in Jupyter, Juno and VS Code.
Installation
Install with:
]add Gnuplot
A working gnuplot package must be installed on your platform.
You may check the installed Gnuplot.jl version with:
]st Gnuplot
If the displayed version is not v1.4.0 you are probably having a dependency conflict. In this case try forcing installation of the latest version with:
]add Gnuplot@1.4.0
and check which package is causing the conflict.
Test package:
using Gnuplot
println(Gnuplot.gpversion())
test_terminal()
Quick start
The following examples are supposed to be self-explaining. See documentation for further informations.

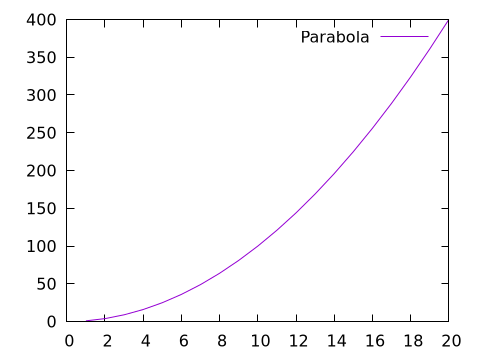

A simple parabola
x = 1.:20
@gp x x.^2 "with lines title 'Parabola'"
save(term="pngcairo size 480,360", output="examples/ex1.png")
save("parabola.gp") # => save a script file with both data and command to re-create the plot.

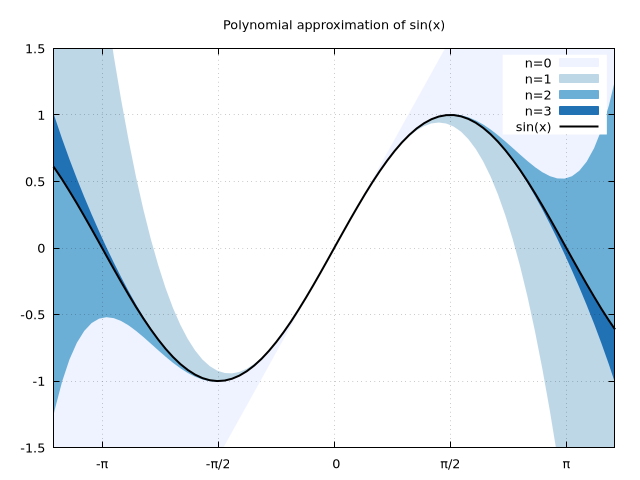

A slightly more complex plot, with unicode on X tics
x = -2pi:0.1:2pi
approx = fill(0., length(x));
@gp tit="Polynomial approximation of sin(x)" key="opaque" linetypes(:Blues_4)
@gp :- "set encoding utf8" raw"""set xtics ('-π' -pi, '-π/2' -pi/2, 0, 'π/2' pi/2, 'π' pi)"""
@gp :- xr=3.8.*[-1, 1] yr=[-1.5,1.5] "set grid front"
@gp :- x sin.(x) approx .+= x "w filledcurve t 'n=0' lt 1"
@gp :- x sin.(x) approx .+= -x.^3/6 "w filledcurve t 'n=1' lt 2"
@gp :- x sin.(x) approx .+= x.^5/120 "w filledcurve t 'n=2' lt 3"
@gp :- x sin.(x) approx .+= -x.^7/5040 "w filledcurve t 'n=3' lt 4"
@gp :- x sin.(x) "w l t 'sin(x)' lw 2 lc rgb 'black'"
save(term="pngcairo size 640,480", output="examples/ex2.png")

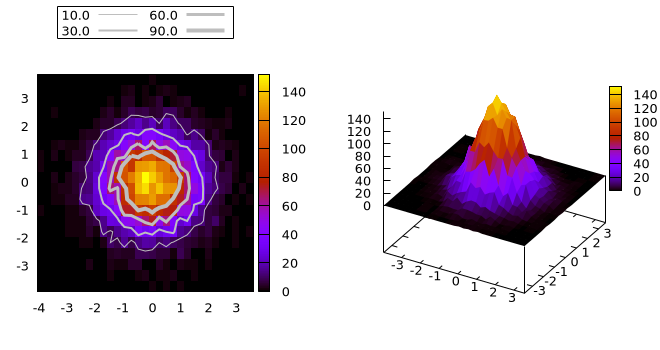

Multiplot: a 2D histogram contour plot and a 3D surface plot
x = randn(10_000)
y = randn(10_000)
h = hist(x, y, bs1=0.25, nbins2=20)
@gp "set multiplot layout 1,2"
@gp :- 1 key="outside top center box horizontal" "set size ratio -1" h
clines = contourlines(h, "levels discrete 10, 30, 60, 90");
for i in 1:length(clines)
@gp :- clines[i].data "w l t '$(clines[i].z)' lw $i lc rgb 'gray'" :-
end
@gsp :- 2 h.bins1 h.bins2 h.counts "w pm3d notit"
save(term="pngcairo size 660,350 fontscale 0.8", output="examples/ex3.png")
Further examples
The main gallery of examples is maintained in a separate repository: https://lazarusa.github.io/gnuplot-examples/
Since Gnuplot.jl is just a transparent interface (not a wrapper) it exposes all capabilities of the underlying gnuplot process, hence pure-gnuplot examples also applies to Gnuplot.jl. Further examples are available here:
